Floating Shelf Brackets Concealed Hidden Fixing Support for Shelves
Hafele Concealed Shelf Support, for Installation into Masonry Walls

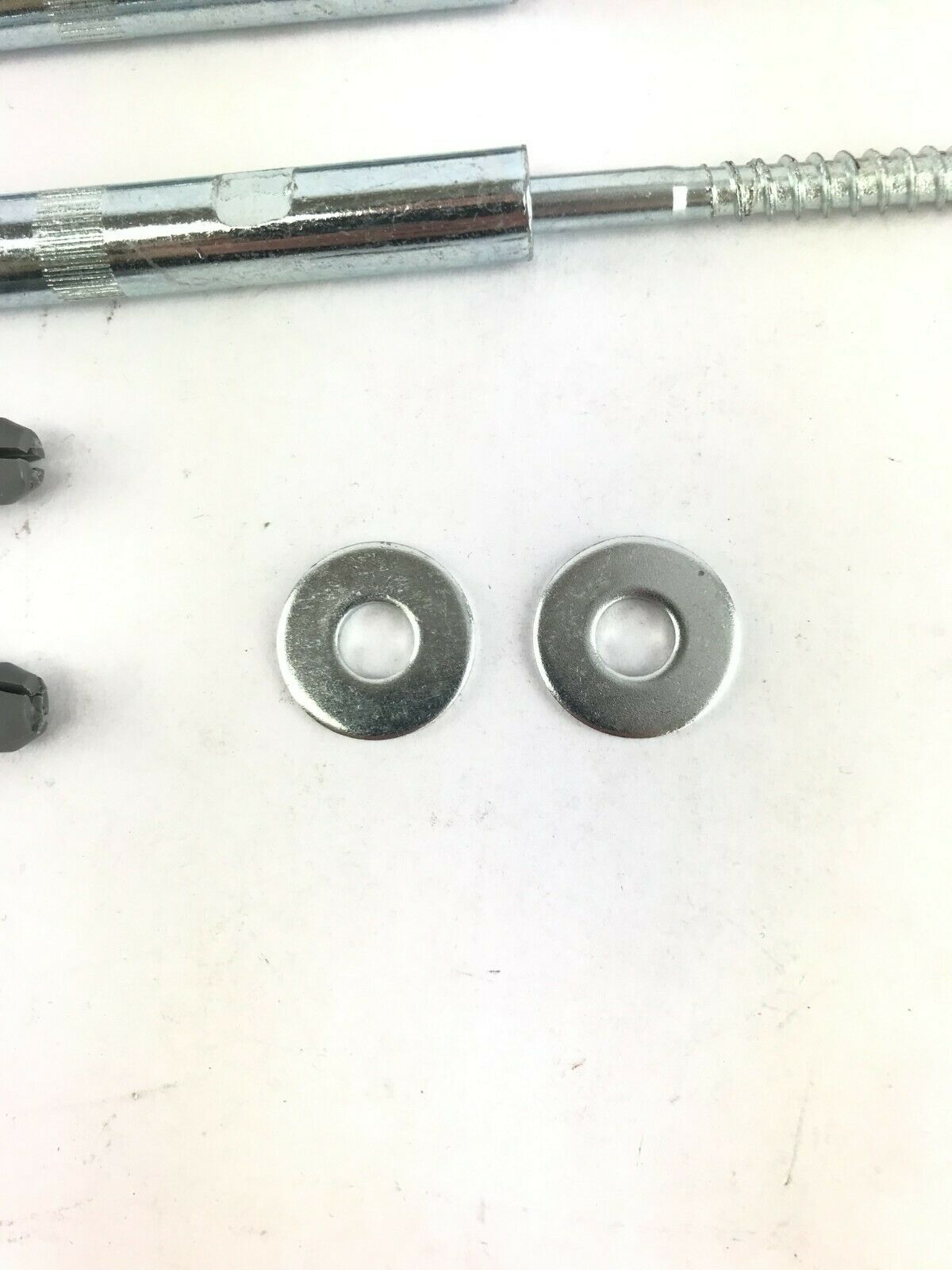

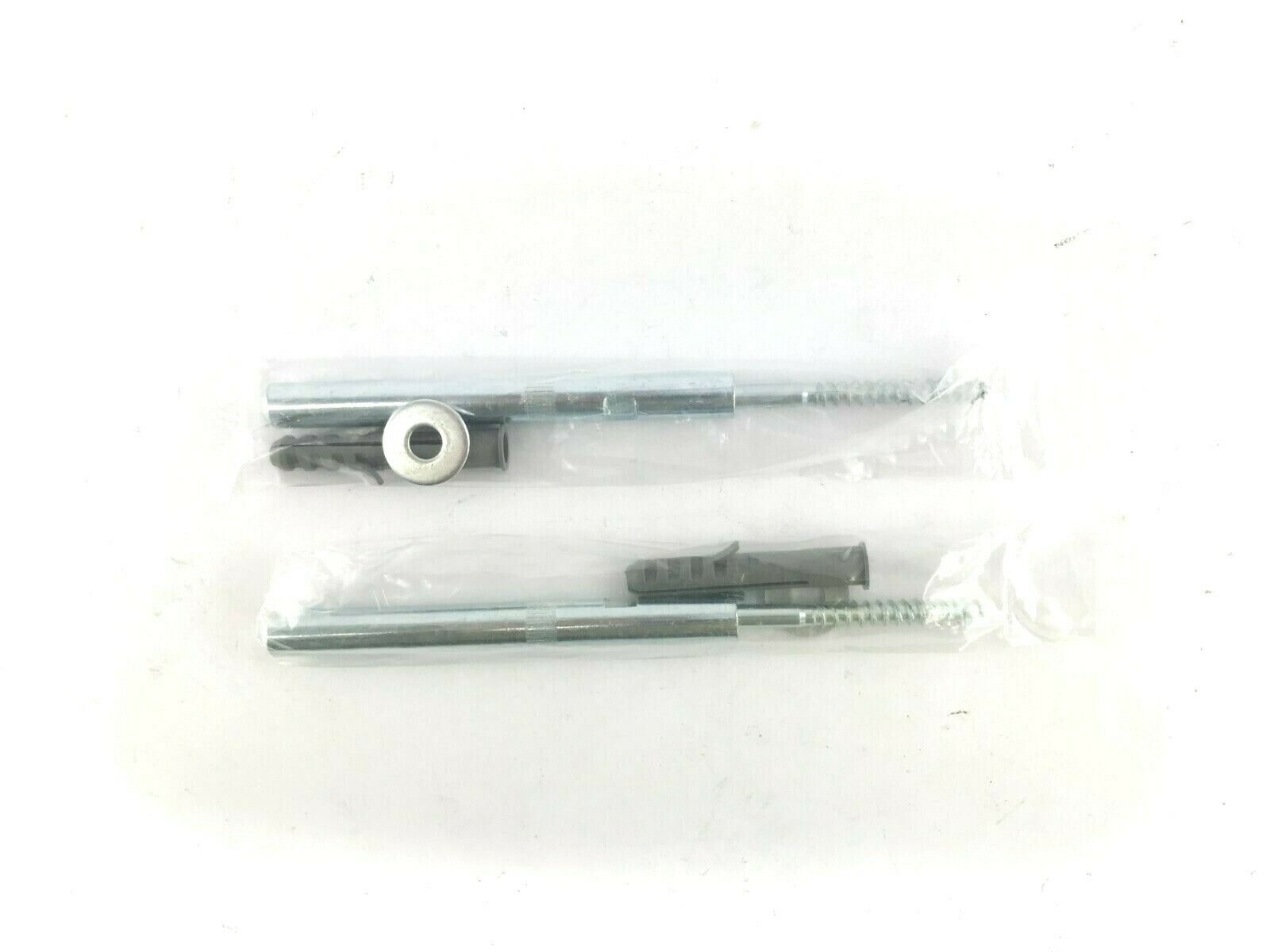

Supplied with

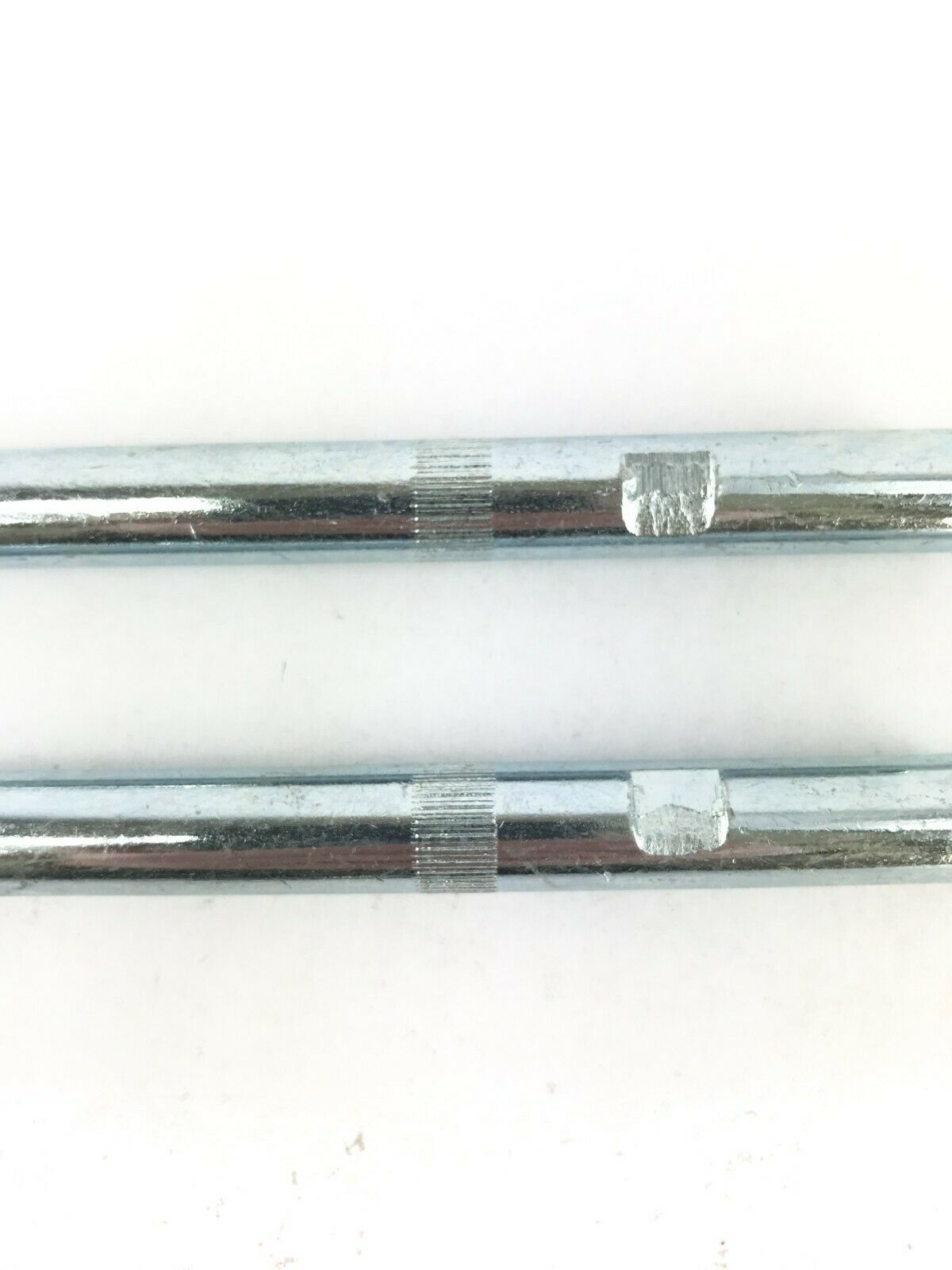

1x Supporting pin with screw, hardened steel
1x Washer, galvanized steel

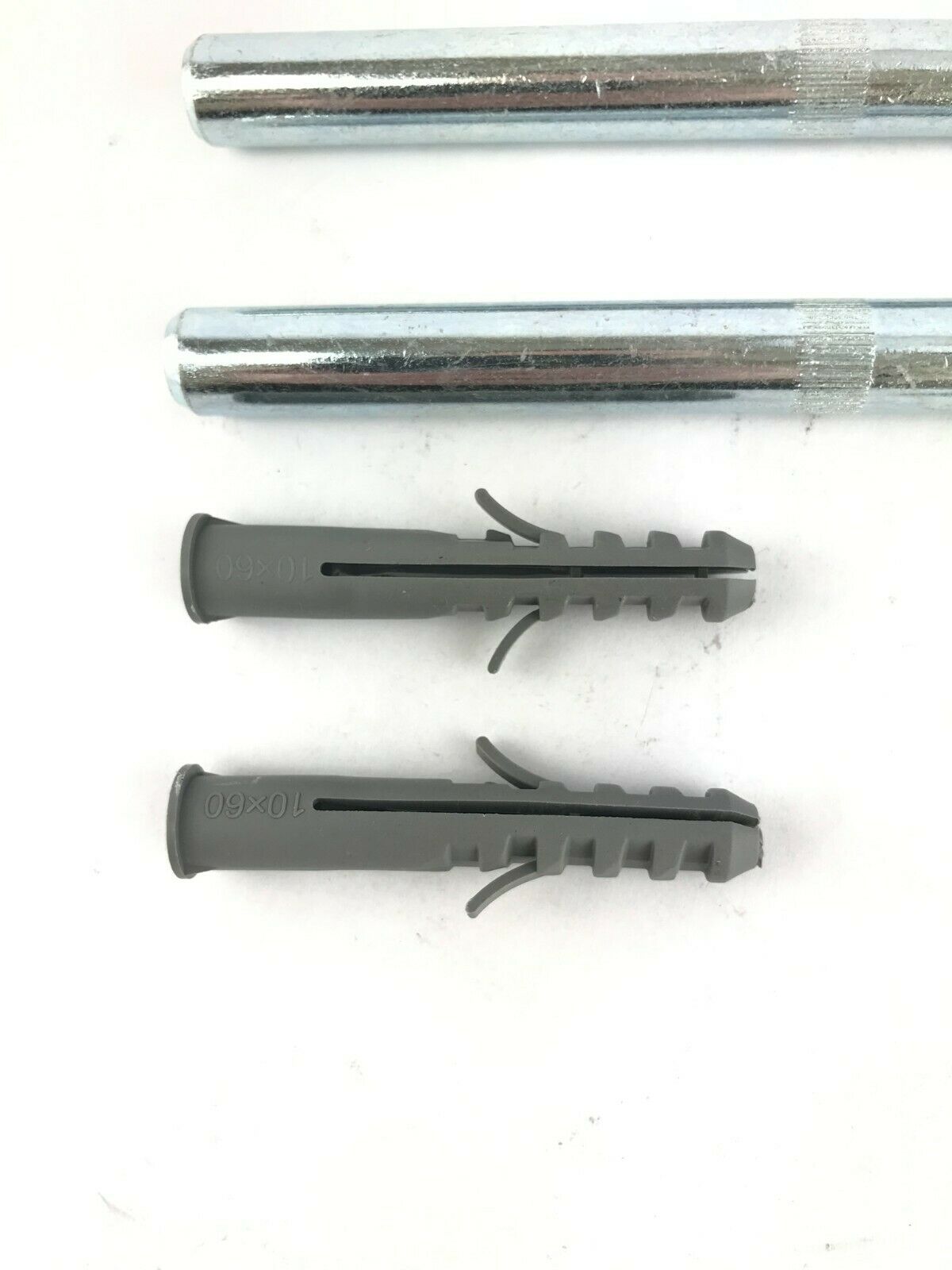

1x Wall plug, SR 10 60 mm, grey nylon
Application
For concealed mounting of shelves
For installation into woodwork or masonry walls
Suitable for all domestic applications, especially shelving systems, radiator screens and telephone supports
Installation
Drill Ø 10 mm hole and insert wall plug
Slip washer (supplied) onto screw thread
Screw shelf support into wall plug
Install shelf on support as far as the knurled section
Use an SW 10 open-ended wrench for vertical adjustment
Finally push the shelf all the way to the wall
