10 Pack of White Twin Slot Shelving System Support Uprights, Brackets & Bookends
Adjustable Wall Mounted Shelving System
Antimicrobial Powder Coating That Makes It Ideal For Use In Healthcare Settings.
Uprights and Brackets Are Sold Separately

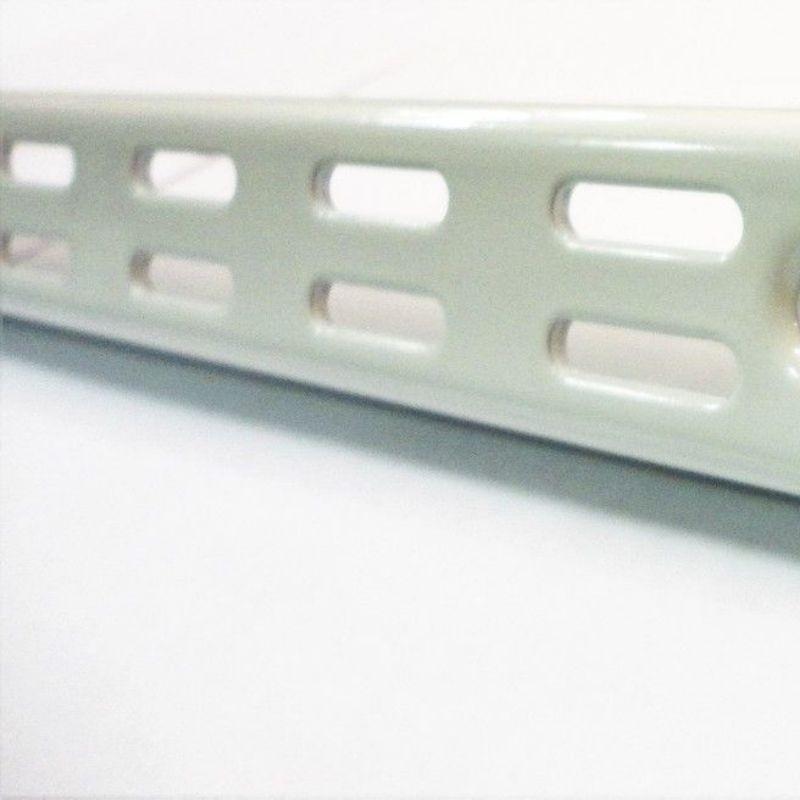

This system comprises of wall fixed "twin" slotted uprights and sturdy brackets that "slot" into the upright as shown in the system images above. It offers a very versatile adjustable shelving system which correctly fitted and with normal usage makes a very durable unit that is easy to maintain.
When putting together the system, please take into account the structure of the wall, the type of fixings used, and the weight displacement.
We are proud to offer this amazing easy use adjustable Twin Slot shelving system made up of the following.
Uprights, Brackets and Bookends with Antimicrobial Protective Coating. Available as single items or packs of 10 items (bookends sold in pairs).
Produce bespoke shelving to fit your desired feature area by following the below.
Choose required packs of uprights and/or brackets from the drop-down menu above.
Uprights available in 170mm, 430mm, 710mm, 1000mm, 1220mm, 1600mm, 1980mm & 2400mm.
Brackets available in 120mm, 170mm, 220mm, 270mm, 320mm, 470mm & 610mm.
This system comprises of wall fixed "twin" slotted uprights and sturdy brackets which "slot" into the upright as shown in the system images above. It offers a very versatile adjustable shelving system which correctly fitted and
with normal usage make a very durable unit which is easy to maintain.
No special tools are required for fitting, using brown plastic rawl plugs (should suit a 7mm drill bit) and 3" x No 10 (75mm x 5mm) screws you will be able to install given the correct substrate and site conditions.
Select your Upright Fixings Pack which includes 10 Screws and Plugs per Pack from the above drop-down menu as per the following:
2400mm - 6 Fixings per Upright
1980mm - 6 Fixings per Upright
1600mm - 5 Fixings per Upright
1200mm - 4 Fixings per Upright
1000mm - 4 Fixings per Upright
710mm - 3 Fixings per Upright
430mm - 2 Fixings per Upright
Maximum loads for each bracket as follows:
120mm = 151kg, 170mm = 108kg, 220mm = 84kg, 270mm = 69kg, 320mm = 60kg, 370mm = 57kg, 470mm = 80kg 610mm = 74kg.
